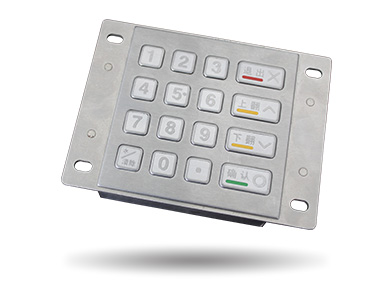

0755-29641875Financial Encryption Keypad
Technical features:
Power voltage:DC5V/±10%
Power supply: USB power share
Electricity Current: standby ≤100mA,working status peak: ≤200mA
Communication mode: RS232 interface/USB-HID compatible
Keycaps: 0~9 numeric keys ;Function keys as “Cancel”, “Enter”,” F1”,”F2”,”F3”
Working lifetime: no less than 5,000,000 times
Contact-type IC card interface: ISO7816 Standards compliant and Chinese financial IC card PBOC 2.0 rules compliant.
IC card service voltages: 5V, and the electricity current is less than 50mA
Lifetime of the card holder: no less than 200,000 times
Support non-contact IC card interface
Support IC card and CPU card which are ISO14443TYPE-A&B standards compliant
Support non-contact type CPU card that meet the PBOC rules, support dual-interface card and non-contact type mobile phone card
Communication protocol: T=CL
Working frequency: 13.56MHz;
Support card communication rate: 106K/212K/424K bps, and support PPS
Operation distance: 0~5cm
SAM card interface:
ISO7816 Standards compliant and Chinese financial IC card PBOC 2.0 rules compliant.
Physical interface: GSM11.11 rules compliant
Encryption algorithm: support DES/3DES
Environment: temperature 0~40℃, humidity: 10%~90%
Support USB1.1/USB2.0 standards
